Continuous Plasterboard Coating Plant

MOQ : 1 Set

Keyword : Fully Automatic Gypsum Board Coating Production Line

Warranty : 1 Year

Delivery Time : 90days

Coating Material : Water-based Latex Paint (Eco-friendly)

Installed Power : 125 kW

Place of Origin : CHINA

Product Name : Continuous Plasterboard Coating Plant

Usage : Decorative Finishing, Surface Coating, Painting

Spraying Mode : Single-coat / Double-coat

Board Size : 600×600mm, 600×1200mm, 1220×2440mm

Price : $150000

Line Speed : 5-6 m/min

Payment Terms : L/C,T/T

Application : Gypsum Board / Plaster Board / Perforated Gypsum Board / Paper-faced Gypsum Board

Contact Now

Continuous Plasterboard Coating Plant

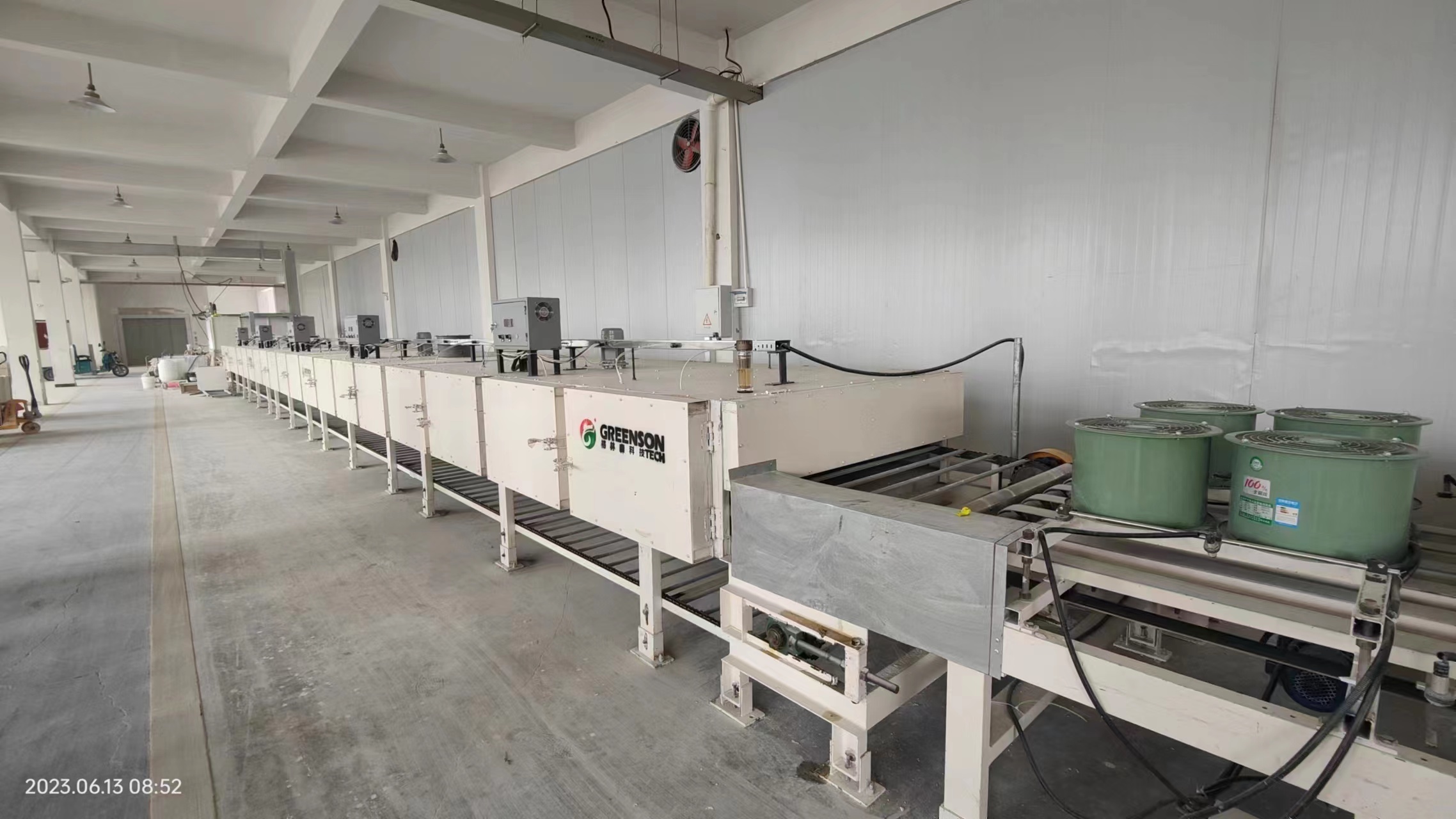

This gypsum-board spraying production line applies eco-friendly water-based latex paint to surfaces of perforated gypsum boards or paper-faced gypsum boards for decorative finishing. Both single-coat and double-coat spraying modes are supported.

Spraying Process Flow

1st-coat spraying
1st-stage drying
2nd-coat spraying
2nd-stage drying
Board combining
Board stacking
Palletizing
Packaging

Technical Parameters

Item	Specification
Applicable gypsum-board sizes	600×600 mm, 600×1200 mm, 1220×2440 mm
Line running speed	5-6 m/min
Installed power (for single-coat spraying and drying section)	125 kW
Control mode	Variable-frequency speed regulation
